Описание

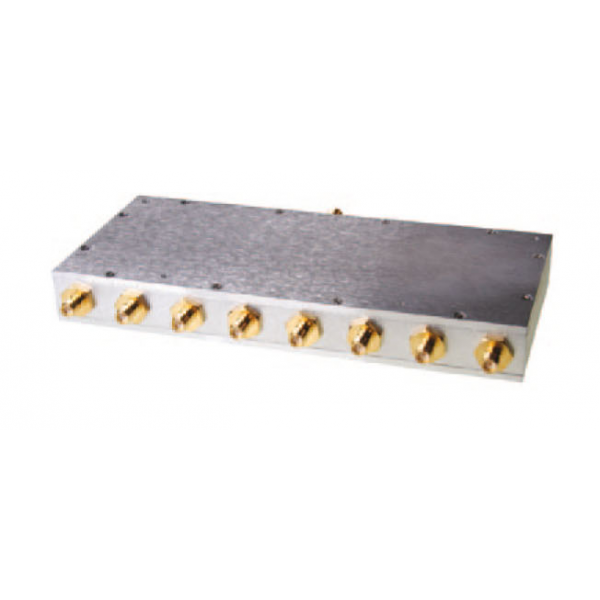

Техническое описание на ZB8PD-4-N Сплиттер : 8 Way-0° 50Ω 2000 to 4200 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1,2,3,4,5,6,7,8 1,2,3,4,5,6,7,8 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.875W max. Features • wideband, 2000 to 4200 MHz • low insertion loss 0.8 dB typ. • good isolation, 23 dB typ. • rugged shielded case Applications • UHF/SHF • ISM • MMDS • terrestrial radio
