Описание

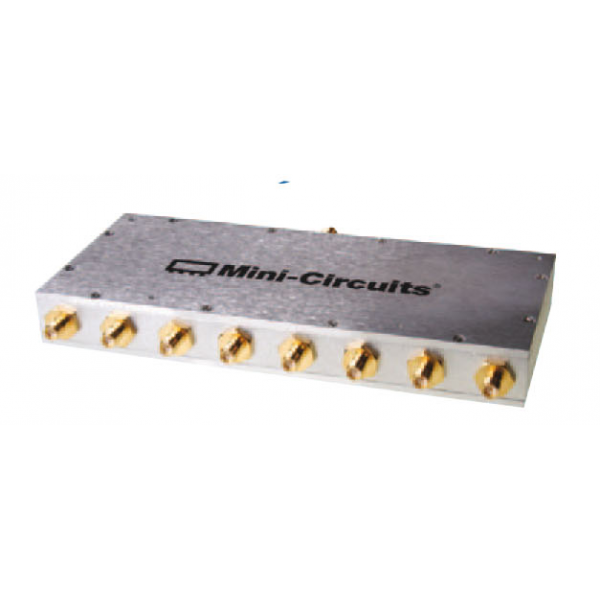

Техническое описание на ZB8PD-622-S+ Сплиттер : 8 Way-0° 50Ω 3200 to 6200 MHz Maximum Ratings Coaxial Connections Features • ISM applications • SATCOM • WIMAX • radar SUMPORT S PORT 1,2,3,4,5,6,7,8 1,2,3,4,5,6,7,8 • wideband • good isolation, 26 dB typ. • good output VSWR, 1.22:1 typ. Applications Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.875W max.
