Описание

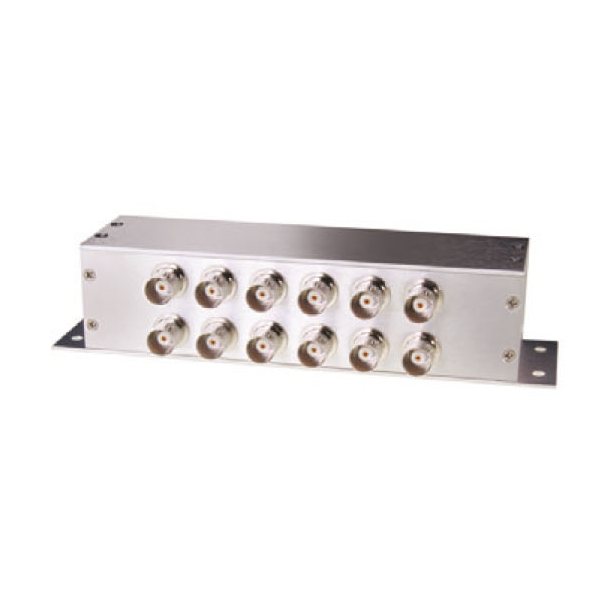

Техническое описание на ZFSC-12-1-S Сплиттер : 12 Way-0° 50Ω 1 to 200 MHz Maximum Ratings Coaxial Connections SUM PORT S(COM) PORT 1,2,3,.....,12 1,2,3.....,12 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.87W max. Features • high isolation, 35 dB typ. • excellent amplitude unbalance, 0.2 dB typ. • rugged shielded case Applications • HF/VHF • instrumentation • communication systems
