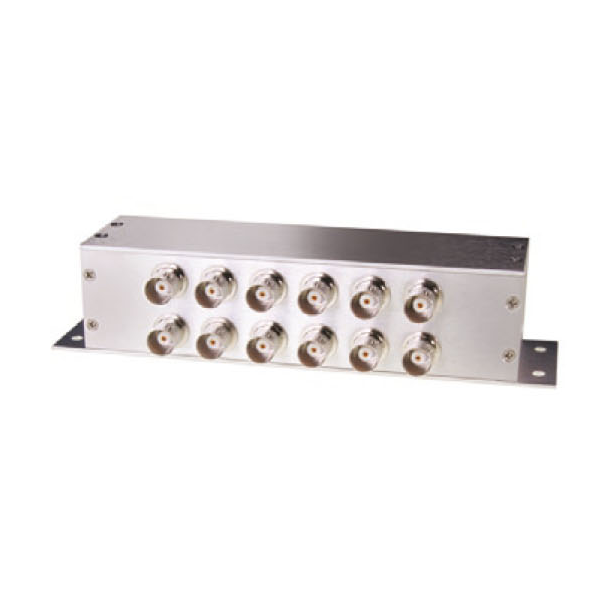

Техническое описание на ZFSC-12-11-S Сплиттер : 12 Way-0° 50Ω 10 to 300 MHz Maximum Ratings Coaxial Connections SUM PORT S(COM) PORT 1,2,3,.....,12 1,2,3.....,12 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.87W max Features • high isolation, 33 dB typ. • excellent amplitude unbalance, 0.3 dB typ. Applications • VHF • instrumentation • defense and federal communications
