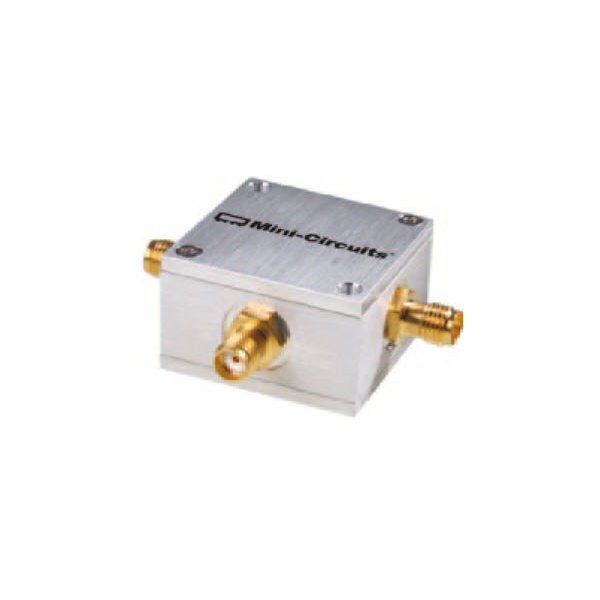

Техническое описание на ZFSC-2-2500-S+ Сплиттер : 2 Way-0° 50Ω 10 to 2500 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.125W max. Features • very wideband, 10 to 2500 MHz • low insertion loss, 0.4 dB typ. • excellent amplitude unbalance, 0.1 dB typ. • excellent phase unbalance, 1.0 deg. typ. • rugged shielded case Applications • cellular • GPS • PCS/DCS • ISM • satellite distribution
