Описание

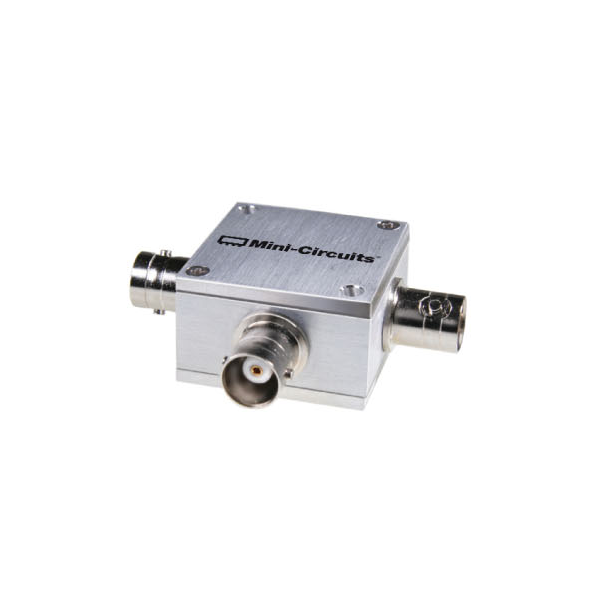

Техническое описание на ZFSC-2-5B-S Сплиттер : 2 Way-0° 50Ω 10 to 1500 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.125W max. Features • wideband, 10 to 1500 MHz • high insertion loss, 0.5 dB typ. • high isolation, 30 dB typ. • excellent amplitude unbalance, 0.1 dB typ. • excellent phase unbalance, 0.5 deg. typ. • rugged shielded case Applications • cellular • satellite distribution • VHF/UHF
