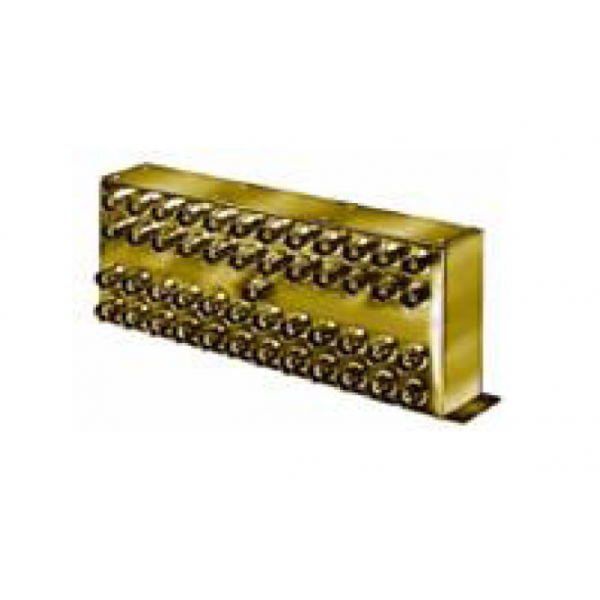

ZFSC-48-1-75 Сплиттер

Техническое описание на ZFSC-48-1-75 Сплиттер : 48 Way-0° Notes: Matched power rating: 1 Watt. Internal load dissipation: 0.87 Watt. Denotes 75 Ohm model, for coax connector models 75 Ohm BNC connectors are standard. Parameter Min. Typ. Max. Units Frequency 10 300 MHz Isolation 10 - 100 MHz 25 30 dB 100 - 150 MHz 20 28 dB 150 - 300 MHz 20 23 dB Insertion Loss Above 16.8 dB 10 - 100 MHz 1.20 2.00 dB 100 - 150 MHz 2.10 2.50 dB 150 - 300 MHz 2.80 4.00 dB Phase Unbalance 10 - 100 MHz 0.600 deg. 100 - 150 MHz 0.700 deg. 150 - 300 MHz 1.000 deg. Amplitude Unbalance 10 - 100 MHz 0.249 dB 100 - 150 MHz 0.332 dB 150 - 300 MHz 0.397 dB VSWR SUM Port 1.25 (:1) OUT Ports 1.25 (:1)
