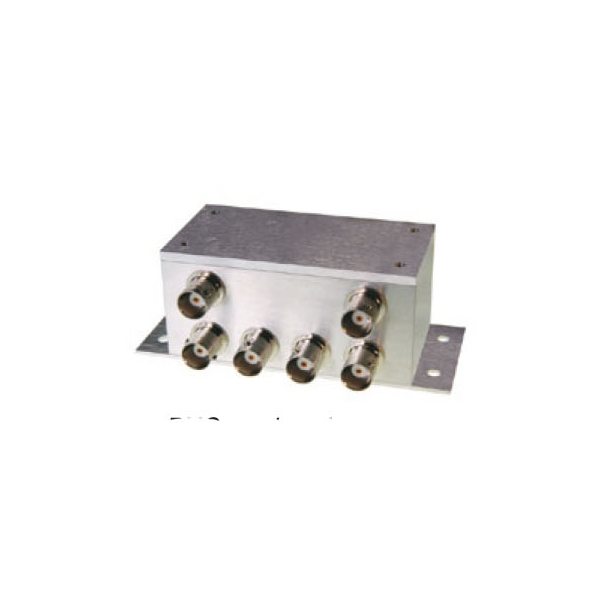

ZFSC-6-110-S Сплиттер

Техническое описание на ZFSC-6-110-S Сплиттер : 6 Way-0° 50Ω 1 to 500 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1,2,3,4,5,6 1,2,3,4,5,6 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.5W max Features • wideband, 1 to 500 MHz • low insertion loss, 0.6 dB typ. • good isolation, 26 dB typ. • good amplitude unbalance, 0.3 dB typ. • rugged shielded case Applications • VHF/UHF • instrumentation • receivers and transmitters
