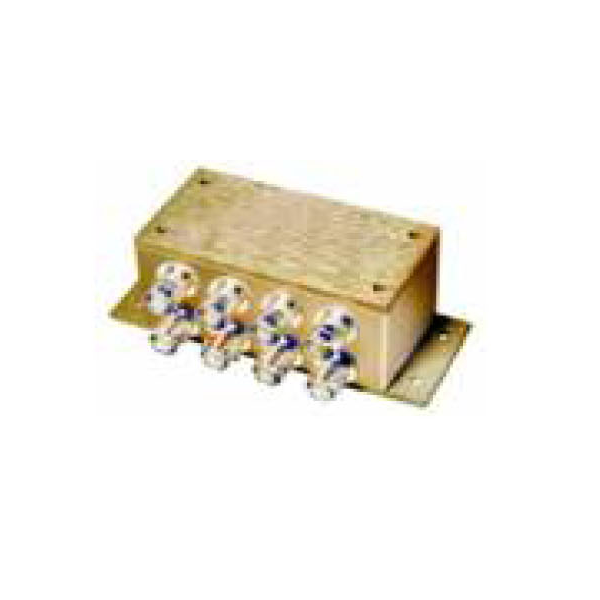

ZFSC-8-6 Сплиттер

Техническое описание на ZFSC-8-6 Сплиттер : 8 Way-0° Parameter Min. Typ. Max. Units Frequency 0.01 10 MHz Isolation 0.01 - 0.1 MHz 20 35 dB 0.1 - 5 MHz 25 40 dB 5 - 10 MHz 25 35 dB Insertion Loss Above 9.0 dB 0.01 - 0.1 MHz 0.30 1.00 dB 0.1 - 5 MHz 0.20 0.60 dB 5 - 10 MHz 0.30 0.70 dB Phase Unbalance 0.01 - 0.1 MHz 0.034 4.000 deg. 0.1 - 5 MHz 0.098 2.000 deg. 5 - 10 MHz 0.251 3.000 deg. Amplitude Unbalance 0.01 - 0.1 MHz 0.001 0.400 dB 0.1 - 5 MHz 0.001 0.200 dB 5 - 10 MHz 0.006 0.300 dB VSWR SUM Port 1.17 (:1) OUT Ports 1.06 (:1) Notes: Matched power rating: 1 Watt. Internal load dissipation: 0.62 Watt. Below 0.1 MHz power handling decrease as to typically 15 dBm at 0.01 MHz, 23 dBm at 0.025 MHz, and 29 dBm at 0.05 MHZ.
