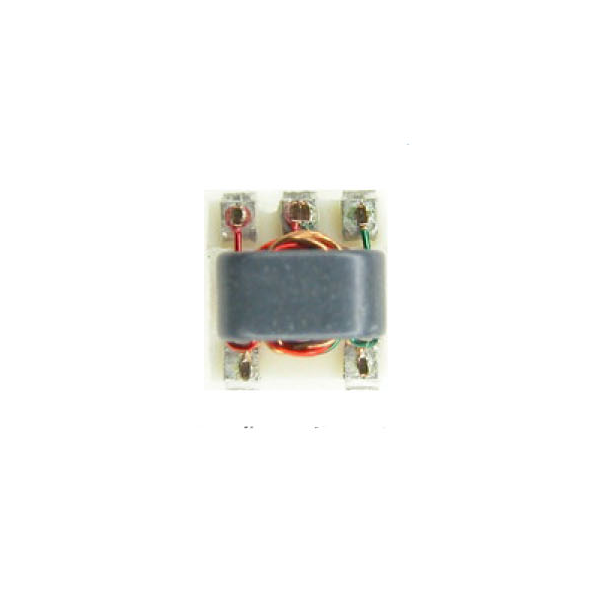

Техническое описание на TC2-1T Трансформатор : 50Ω 3 to 300 MHz Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25W DC Current 30mA • leadless surface mount • good return loss • excellent amplitude unbalance (0.5 dB typ) and phase unbalance (4 deg. typ) in 1 dB bandwidth • aqueous washable • impedance matching • balanced to unbalanced transformation • push-pull amplifier
