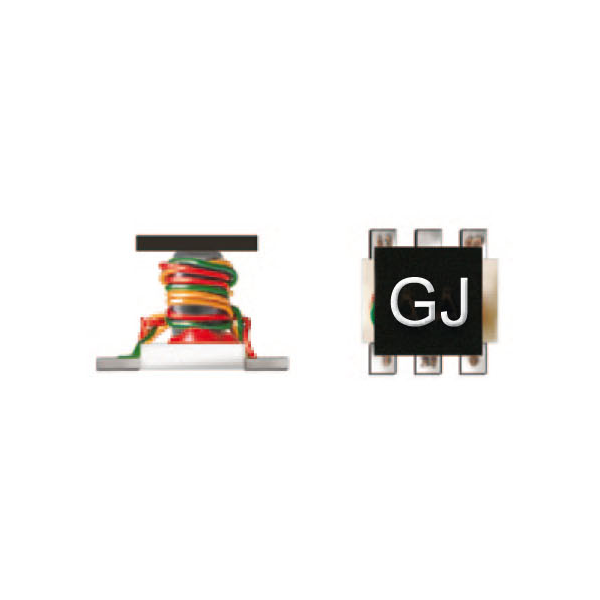

Техническое описание на TCM2-43X+ Трансформатор : 50Ω 10 to 4000 MHz Maximum Ratings Pin Connections PRIMARY DOT 3 PRIMARY 1, 2 SECONDARY DOT 6 SECONDARY 4 GND 1, 2 NOT USED 5 Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.4W DC Current 30mA Features • PCS • wideband push-pull amplifi ers • cellular • wide bandwidth 10 to 4000 MHz • balanced transmission line • excellent return loss • aqueous washable
