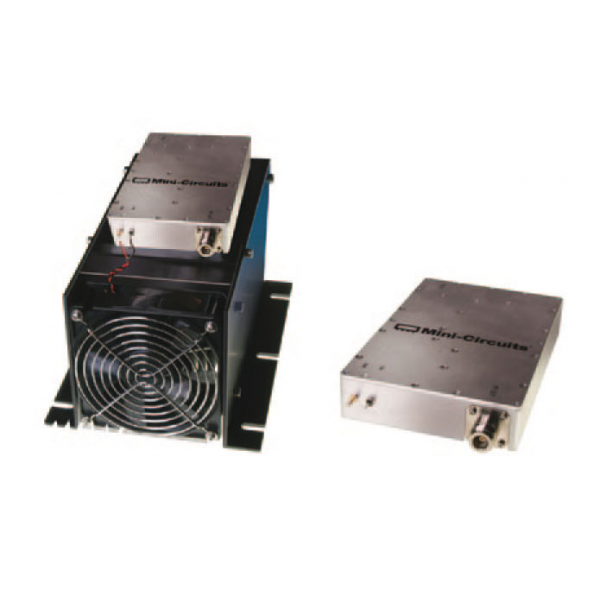

Техническое описание на ZHL-100W-13X+ Усилитель : 50Ω 100W 800 to 1000 MHz Features • saturated power 100W typ. • wide bandwidth, usable 750 to 1050 MHz • high gain, 50 dB typ. • good gain fl atness, ±1dB typ. • unconditionally stable • self protected against excessive drive, high case temp., reverse polarity and shorting/ unshorting • can withstand short and open circuit at output while delivering 100 watts Applications • AM/FM • multi-carrier amplifi cation • broadband swept signal • linear pulse • feed forward
