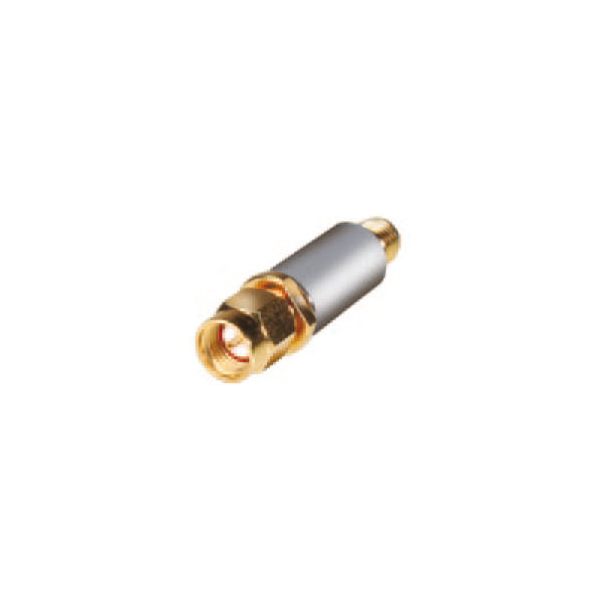

Техническое описание на VHP-39 Фильтр высоких частот : 50Ω 4600 to 5500 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power Input* 10W at 25°C Features • rugged unibody construction, small size • pass band insertion loss 1.0 dB typ. • excellent power handling, 10W • low cost Applications • sub-harmonic rejection of VCO • transmitters/receivers • lab use
