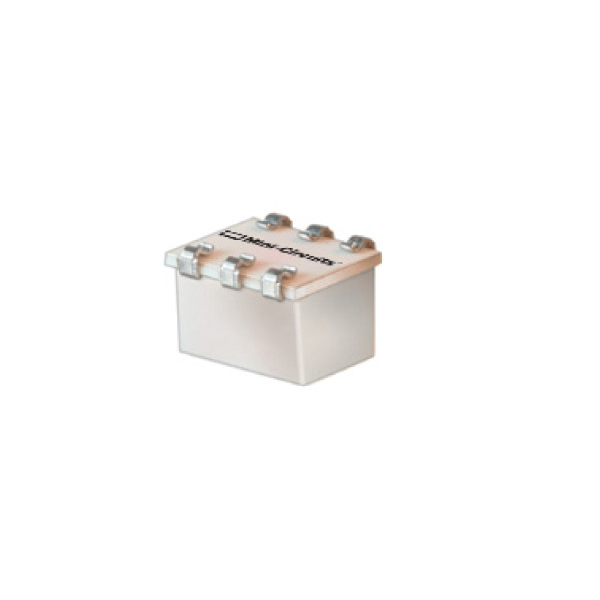

Техническое описание на JMS-5H Частотный смеситель : Level 17 (LO Power +17 dBm) 5 to 1500 MHz Operating Temperature -40°C to 85°C Features • low conversion loss, 5.9 dB typ. • miniature surface mount • J-leads for strain relief and excellent solderability Applications • up & down converters for receivers & transmitters • satellite distribution • cellular/ISM/GSM Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA
