Описание

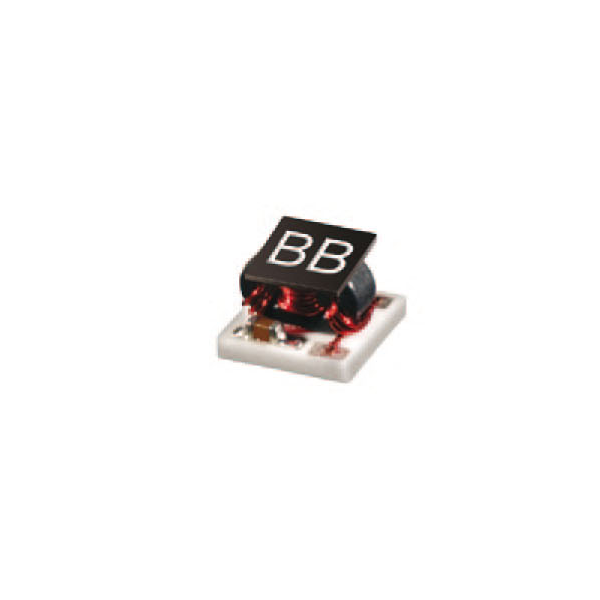

Техническое описание на TCBT-6G+ Bias Tee : 50Ω Wideband 50 to 6000 MHz Maximum Ratings Features • biasing amplifi ers • biasing of laser diodes • biasing of active antennas RF 4 RF&DC 3 DC 1 ISOLATE(see PCB Layout) 2 • wideband, 50 to 6000 MHz • low insertion loss, 0.7 dB typ. • miniature surface mount 0.15"x0.15" • protected by US Patent, 7,012,486 • aqueous washable Applications Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 30dBm max. Voltage at DC port 25V max. Input Current 200mA
